Gas Needle Moving Up and Down: 6 Causes and How to Fix Each One

Quick Answer: A fuel gauge needle that bounces or moves erratically is almost always caused by a failing fuel level sending unit — the float-and-resistor assembly inside your fuel tank. This is the most common cause by a significant margin. Other causes include corroded wiring between the sending unit and gauge, a blown instrument cluster fuse, or a faulty gauge itself. Most sending unit failures are fixable for £80–£250.

I diagnosed this exact problem on a Nissan Micra a few months ago — the fuel gauge was swinging wildly from near-empty to three-quarters full while driving, with no correlation to actual fuel level. The owner had been estimating fuel level by mileage for three weeks. Classic sending unit failure. The float arm had developed a crack and was partially filling with petrol, causing it to sink lower than the actual fuel level and give erratic readings as it sloshed around.

New sending unit from a breakers yard: £45. Job done in an afternoon.

The frustrating thing about a fluctuating fuel gauge is that it doesn’t affect how the car drives — so people often live with it for months before fixing it. But running out of fuel unexpectedly because your gauge is unreliable is both inconvenient and potentially damaging to a modern fuel pump (which relies on being submerged in fuel for cooling).

How the Fuel Gauge System Works

Understanding the system makes diagnosis much faster.

The fuel sending unit sits inside the fuel tank, attached to the fuel pump assembly on most modern cars. It consists of:

A float — a hollow plastic or foam ball attached to a metal or plastic arm

A variable resistor (rheostat) — a resistive strip that the float arm slides along

As fuel level drops, the float sinks, moving the arm along the resistor. This changes the electrical resistance of the circuit. The instrument cluster reads this resistance and moves the needle accordingly:

High resistance = low fuel (needle at E)
Low resistance = full tank (needle at F)
(Or the reverse on some manufacturers — Fords, for example, use the opposite convention)

The instrument cluster gauge receives the resistance signal and converts it to needle position. On modern cars, this goes through the body control module (BCM) rather than directly to the gauge.

The ground connection completes the circuit. A poor ground at the sending unit or instrument cluster is a common and often overlooked cause of gauge problems.

A fault at any of these points — float, resistor, wiring, ground, BCM, or gauge — can cause erratic readings.

6 Causes of a Gas Needle Moving Up and Down

1. Failing Fuel Level Sending Unit — Cause in 80% of Cases

The sending unit is the most common failure point, and it fails in several specific ways:

Worn resistive strip: The float arm slides across a resistive strip hundreds of thousands of times over the unit’s life. The coating wears through at certain positions — typically the frequently-used range (between quarter and three-quarter tank). When the arm reaches a worn section, the resistance signal drops out, causing the gauge to swing erratically or fall to empty briefly.

Cracked or waterlogged float: The float must be completely sealed to maintain buoyancy. If it cracks — from age, impact, or fuel additive damage — petrol enters the float. It becomes heavier, sits lower than the actual fuel level, and sloshed around with vehicle movement, causing erratic gauge movement.

Bent or kinked float arm: Impact from debris, improper installation, or collision damage can bend the arm. A kinked arm may bind against the tank wall or fuel pump assembly, giving false readings.

Typical failure pattern: The gauge works correctly when full and when nearly empty — but fluctuates erratically in the middle range (around quarter to half tank). This matches the typical wear pattern on the resistive strip. If this describes your gauge, the sending unit is almost certainly the cause.

Fuel Sending Unit — search by vehicle make/model for correct fitment

Cost:

Sending unit replacement DIY: £40–£120 in parts
Shop: £120–£280 including labour
Note: On most modern cars, the sending unit is integrated with the fuel pump assembly. Replacing just the sending unit may not be possible — you may need the full pump/sender unit.

2. Corroded or Damaged Wiring

The wiring between the fuel tank sending unit and the instrument cluster runs through the underside of the car — exposed to road salt, moisture, and physical damage. Corrosion at connectors or damaged wire insulation creates variable resistance in the circuit, which the gauge interprets as changing fuel level.

Symptoms specific to wiring problems:

Gauge fluctuation that’s worse in wet weather or after driving through puddles

Erratic readings that appeared suddenly after hitting a large pothole (potential wire damage)
Gauge fluctuation on one specific type of road surface (vibration exposing a damaged wire)

How to check: With the engine off, find the wiring harness running to the fuel tank area (usually near the rear of the vehicle, along the floor). Look for:

Green powder or white residue at connectors (corrosion)
Cracked, melted, or chafed wire insulation
Connectors that aren’t fully seated

Quick test: Disconnect the sending unit connector and measure resistance across the sending unit terminals directly with a multimeter. Move the float by hand — resistance should change smoothly. If it does, the sending unit is fine and wiring/gauge is the issue.

Cost: Connector replacement: £15–£40. Full wiring harness section: £60–£200.

3. Poor Ground Connection

The fuel gauge circuit relies on a clean ground at both ends — at the sending unit (ground through the fuel tank or a dedicated ground wire) and at the instrument cluster. Corrosion at either ground point increases circuit resistance erratically, causing needle movement.

Ground problems are disproportionately common because ground points use bolt connections to the chassis — and chassis corrosion is widespread on older vehicles.

How to identify a ground issue: A poor ground usually causes the gauge to read higher than actual fuel level (not lower) — because a high-resistance ground mimics the low-resistance signal of a full tank. If your gauge perpetually reads higher than it should, and fluctuates rather than being stuck, suspect a ground.

Fix: Locate the ground points for the sending unit and instrument cluster (a wiring diagram for your specific vehicle helps here). Remove the ground bolt, clean the contact surfaces to bare metal with sandpaper, apply a thin coat of dielectric grease, and reinstall firmly.

Cost: £0 DIY (sandpaper and 30 minutes), £40–£80 at a shop.

4. Blown or Weak Instrument Cluster Fuse

A fuse that’s blown completely will cause the gauge to read empty or not move at all — not fluctuate. But a fuse that’s making poor contact (corroded fuse legs, a slightly loose fuse) can create intermittent power supply to the instrument cluster, causing gauge movement as power drops in and out.

How to check: Locate the fuse for the instrument cluster (owner’s manual shows which fuse). Remove it and inspect — even if the metal strip looks intact, replace it with the correct amperage rating. Corroded fuse legs can cause intermittent problems without a visible blown strip.

Also check: The instrument cluster fuse box connector itself for corrosion. Water ingress into the fuse box is a common problem on older cars. See our article on water in car fuse box if you suspect moisture has reached the fuses.

Cost: Replacement fuse: £1–£5.

5. Faulty Instrument Cluster or Gauge

The gauge mechanism inside the instrument cluster can fail — either the stepper motor that moves the needle (on digital instrument clusters) or the gauge movement itself. This is less common than sending unit failure but does occur, particularly on high-mileage vehicles and certain models known for instrument cluster issues (early 2000s GM vehicles, for example).

Distinguishing cluster failure from sending unit failure:

If only the fuel gauge is erratic and all other gauges work normally → more likely a sending unit issue
If multiple gauges behave erratically simultaneously → more likely an instrument cluster or ground issue

If the gauge is erratic but the fuel gauge warning light reads correctly (comes on at low fuel even when gauge shows higher) → the sending unit signal is getting to the cluster, suggesting a cluster display problem

Cost:

Instrument cluster repair (specialist): £80–£200
Cluster replacement: £150–£400 depending on vehicle

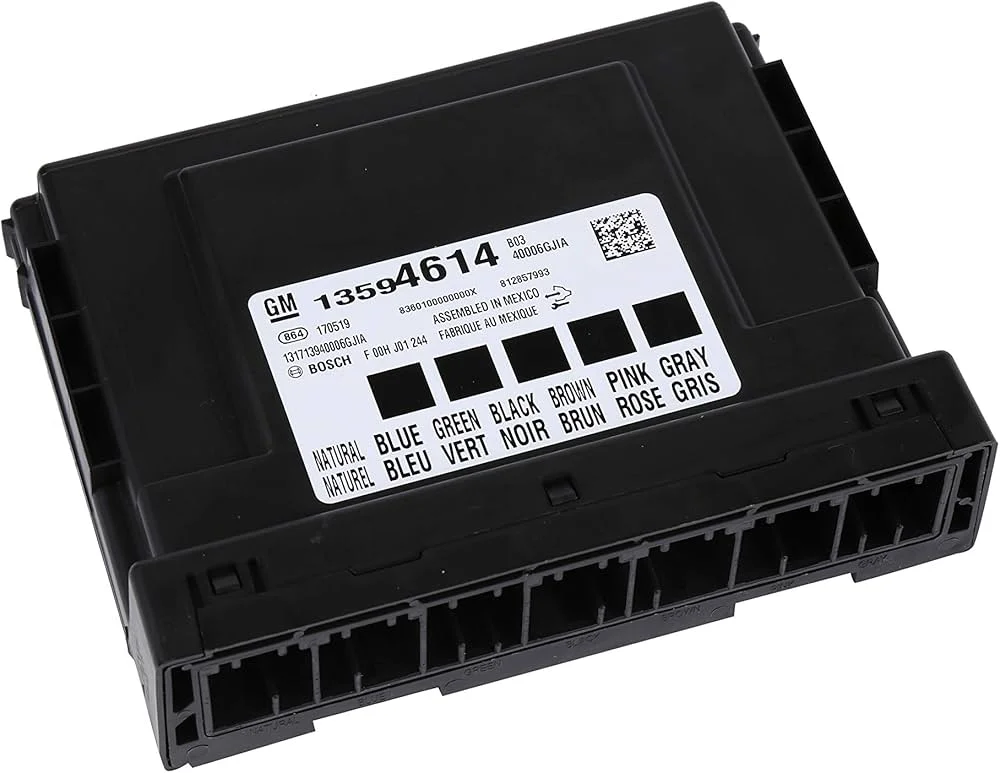

6. Body Control Module (BCM) Issue

On modern cars (roughly post-2005), the fuel level signal from the sending unit doesn’t go directly to the gauge — it passes through the BCM, which processes the signal and sends it to the instrument cluster digitally. A BCM fault can cause incorrect fuel level display.

How to identify BCM involvement: BCM issues typically cause multiple electrical symptoms simultaneously — not just the fuel gauge. If your fuel gauge is erratic alongside other unexplained electrical issues (windows behaving oddly, central locking irregularities, warning lights appearing and disappearing), the BCM deserves investigation.

Diagnosis: Requires a dealer-level or professional scan tool that can read BCM fault codes — a standard OBD2 scanner won’t access BCM modules on most vehicles.

Cost: BCM replacement or reprogramming: £200–£800 depending on vehicle.

Diagnosis Steps — Work Through These in Order

Step 1: Check the Fuse (2 minutes, free)

Replace the instrument cluster fuse even if it looks intact. This rules out the cheapest possible cause.

Step 2: Check Wiring and Connectors (10 minutes, free)

Visually inspect the wiring harness under the vehicle running to the fuel tank area. Check the sending unit connector for corrosion.

Step 3: The Ground Test (15 minutes, free)

Ground the instrument cluster gauge directly to the battery negative terminal with a jump lead. If the gauge stabilises, a poor chassis ground is the cause — trace and clean the ground points.

Step 4: The Resistance Test (20 minutes, requires multimeter)

Disconnect the sending unit connector at the tank. Connect a multimeter to the sending unit terminals (not the harness — the unit itself). Move the float arm through its full range. Resistance should change smoothly and predictably:

Float down (empty position): high resistance (usually 240–250 ohms, but varies by manufacturer)

Float up (full position): low resistance (usually 30–40 ohms)
Any dead spots, sudden jumps, or erratic readings = sending unit failure

AstroAI Digital Multimeter — essential diagnostic tool for any car owner

Step 5: The Bypass Test

Disconnect the sending unit and connect a known resistor across the gauge wire and ground. A 33-ohm resistor should read near full, a 240-ohm resistor should read near empty. If the gauge moves predictably with known resistors, the gauge and wiring are fine — the sending unit is the fault.

Can You Drive With a Faulty Fuel Gauge?

Technically yes — but it’s genuinely risky:

Running out of fuel damages the fuel pump. Modern electric fuel pumps are submerged in the tank and cooled by the fuel surrounding them. Running the tank to empty — which becomes likely when you can’t trust the gauge — lets the pump run hot. Repeated episodes significantly shorten pump life. A fuel pump replacement costs £200–£500.

You risk being stranded unexpectedly. A gauge that reads three-quarters when you’re actually on reserve creates a real breakdown risk, especially at night or on a motorway.

Practical workaround: Track mileage from each fill-up rather than relying on the gauge. Know your car’s realistic range per tank (usually around 400–500 miles for a full tank on most cars) and refuel every 300 miles regardless of what the gauge shows.

For related reading on fuel system issues, see our guide on how to know if my fuel pump is bad — a failing pump often accompanies a failing sending unit since they’re usually one assembly.

Repair Cost Summary

Repair	DIY Cost	Shop Cost
Fuse replacement	£1–£5	£20–£40
Wiring connector repair	£15–£40	£60–£150
Ground point cleaning	£0	£40–£80
Sending unit only	£30–£80	£100–£200
Fuel pump + sender assembly	£60–£180	£200–£450
Instrument cluster repair	N/A	£80–£200
Instrument cluster replacement	£100–£300	£200–£500
BCM replacement/programming	N/A	£200–£800

Frequently Asked Questions

Why does my fuel gauge go up when I accelerate? This is a specific symptom of a sending unit with a damaged float or bent arm — fuel sloshes toward the back of the tank under acceleration, lifting the float momentarily. It’s a reliable sign of a mechanical problem with the sending unit rather than an electrical issue.

My fuel gauge was fine until I got a full tank — now it bounces. Why? At a completely full tank, the float is at maximum extension and the resistive strip contacts the highest point on the track. If this position is worn or corroded, the gauge works fine at partial levels but acts erratically when full. Fill to three-quarters and see if the behaviour changes — if it does, this pattern confirms resistive strip wear.

Can a fuel gauge be fixed without dropping the tank? On most modern cars, no — the sending unit is accessed through the top of the tank, which usually requires removing the rear seat or interior panel on saloons, or accessing from the boot floor. The tank itself doesn’t always need to be removed. On some vehicles (particularly older ones with external sending units), access is possible without tank removal.

Why does my fuel gauge read empty but the car still runs? The gauge is reading lower than the actual fuel level — sending unit is reading incorrectly. The car continues running because there’s actually more fuel present than the gauge shows. This is the sending unit float sitting lower than the actual level, usually from a waterlogged or cracked float.

Is it worth fixing a fuel gauge on a high-mileage car? Usually yes — because the alternative (estimating fuel by mileage) is unreliable and risks fuel pump damage from running low. If the repair cost is reasonable relative to the car’s value, fix it. If it’s a combined pump/sender assembly on a car with 150,000+ miles, consider replacing the full assembly since the pump is also likely approaching end of life.

Why does the fuel gauge work fine sometimes but not others? Intermittent fuel gauge problems are almost always caused by a corroded wiring connector or worn resistive strip with specific dead spots. The gauge works when the float is in good areas of the resistive strip but drops out at worn sections. Track at what fuel level the gauge starts misbehaving — consistent pattern at a specific level points to resistive strip wear at that position.

At what fuel level does your gauge start acting up — full, half, quarter, or unpredictably at all levels? That pattern is the most useful clue for diagnosis — leave it in the comments.
