Quick Answer: Battery voltage dropping while driving means the alternator isn’t keeping up with electrical demand — or has failed entirely. A healthy charging system shows 13.7–14.7 volts at the battery with the engine running. Below 13V while driving means the battery is discharging rather than charging. The most common causes are a failing alternator, a worn drive belt slipping on the alternator pulley, corroded battery terminals increasing resistance, or simply too many electrical loads for the alternator’s output capacity. A multimeter diagnoses this in 5 minutes.
The sequence matters here: battery voltage dropping while driving isn’t a battery problem in most cases — it’s a charging system problem. The battery’s job is to start the engine. Once the engine is running, the alternator takes over — it should be producing enough electricity to power everything and top up the battery simultaneously. When voltage drops while driving, something in that chain has failed.
Understanding this distinction saves money. Replacing a battery that tests as healthy doesn’t fix an alternator that can’t charge it. And an alternator that tests as producing correct voltage doesn’t fix corroded terminals that prevent that voltage from reaching the battery. Diagnose first.
Normal vs Problem Voltage — Know the Numbers
Before diagnosing, understand what normal looks like:
| Condition | Expected Voltage | What It Means |
|---|---|---|
| Engine off, battery rested | 12.6V | Fully charged battery |
| Engine off, battery discharged | 12.0–12.4V | Partially discharged |
| Engine off, battery flat | Below 12.0V | Needs charging or replacement |
| Engine running, no loads | 13.8–14.7V | Alternator charging normally |
| Engine running, full loads on | 13.2–14.2V | Acceptable under load |
| Engine running, dropping to 12V | 12.0–12.5V | Battery discharging — alternator issue |
| Engine running, below 12V | Under 12.0V | Alternator not charging at all |
The key test: Connect a AstroAI Digital Multimeter to the battery terminals with the engine running. If you’re reading below 13.0V — your charging system has a problem. If you’re reading 13.8–14.7V with no loads — it’s working correctly and the voltage drop you’re experiencing is from an intermittent fault or excessive electrical demand.
7 Causes of Voltage Drop While Driving

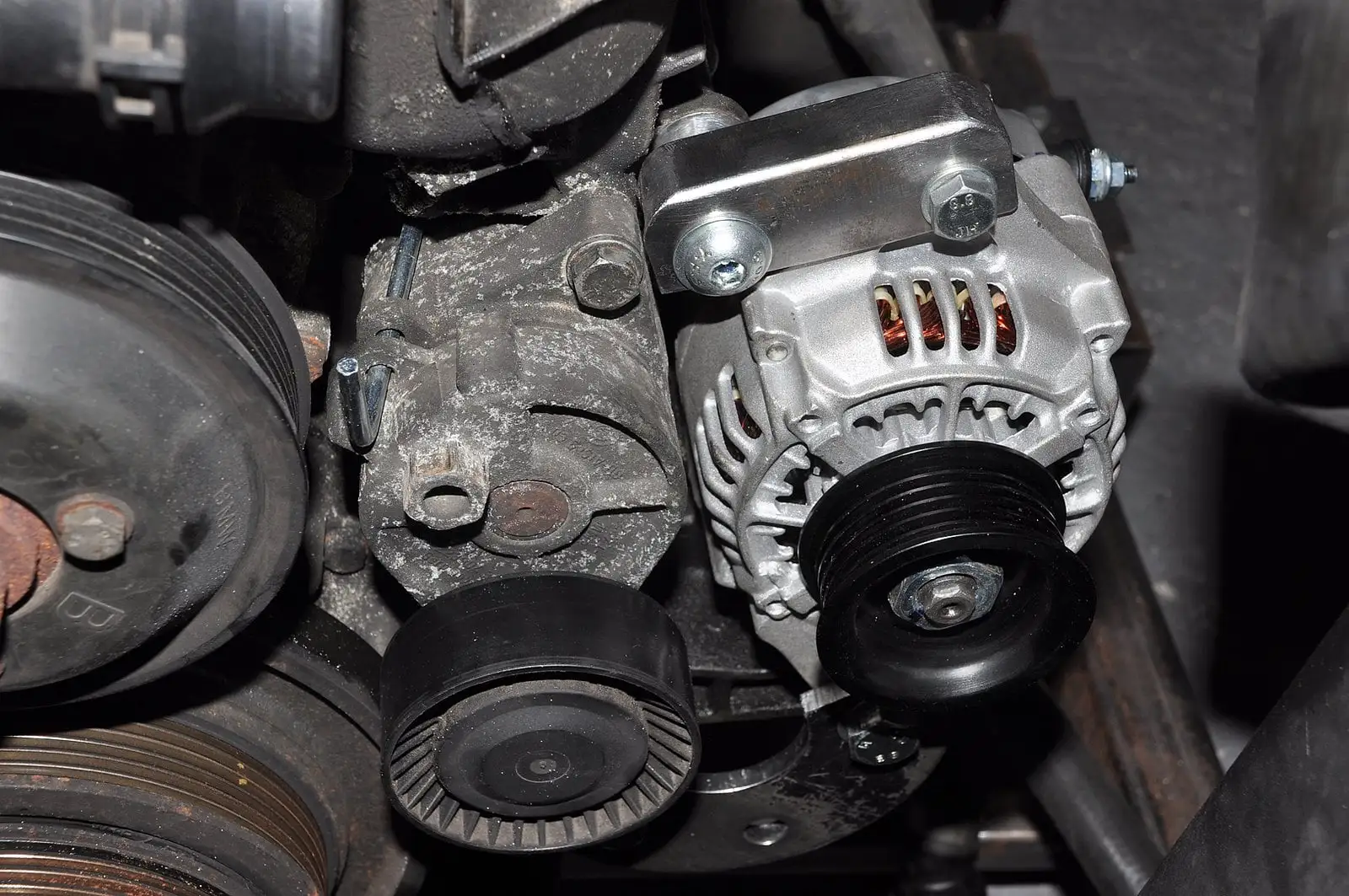

1. Failing Alternator — Most Common Cause
The alternator generates electricity through electromagnetic induction — a pulley spun by the drive belt rotates a rotor inside a stator, producing alternating current that’s converted to DC by internal diodes. When the diodes fail, when the rotor windings develop an open circuit, or when the brushes wear down, output voltage drops or disappears.
Alternator failure patterns:
Gradual output decline: The alternator produces less and less voltage as internal components wear. The battery gauge slowly drops over weeks. Headlights dim progressively. Eventually the battery drains completely.
Intermittent failure: Alternator produces correct voltage when cold but drops when hot (thermal expansion causes intermittent contact failure). Car starts fine but voltage drops after 20–30 minutes of driving.
Complete failure: Alternator stops producing any significant output. Battery voltage immediately begins dropping from the moment the engine starts. Car will run until the battery is completely depleted — typically 20–40 minutes depending on electrical load.
Signs specific to alternator failure:
- Battery warning light on dashboard (this light specifically monitors charging system voltage)
- Whining or grinding sound from the engine bay that changes with RPM (failing bearing)
- Burning smell from the alternator area (failed diode)
- Voltage reading below 13V with engine running
The disconnection test (older vehicles only — NOT on modern cars): With the engine running, briefly disconnect the negative battery terminal. On older vehicles, if the engine dies — the alternator isn’t producing sufficient output to run the engine independently. Do NOT do this on modern vehicles — sudden disconnection can spike voltage and damage the ECU, ABS module, and other sensitive electronics.
For more on alternator lifespan and when to expect failure, see our article on how long do alternators last.
Cost: Alternator replacement DIY: £80–£250 in parts. Shop: £200–£500 including labour.
2. Slipping or Worn Drive Belt
The alternator is driven by the serpentine belt — the same belt that runs the power steering pump, AC compressor, and water pump. If this belt is worn, glazed, or insufficiently tensioned, it slips on the alternator pulley under load. The alternator spins at reduced speed, producing less voltage than required.
How to identify belt slippage:
- A squealing noise from the engine bay that appears when electrical loads are heavy (headlights on, AC on, blower on full) — the belt slipping under the increased alternator load
- Voltage that’s acceptable at light electrical load but drops when multiple accessories are used
- Visible glazing (shiny surface) on the belt, or cracking/fraying
The belt condition check: With the engine OFF, press firmly on the belt midway between two pulleys — there should be about 10mm of deflection. More than 15mm indicates insufficient tension. Inspect the belt surface for cracks, fraying, glazing, or missing ribs.
Cost: Serpentine belt DIY: £15–£40. Shop: £80–£200 including tensioner.
3. Corroded or Loose Battery Terminals
This is the most overlooked cause and one of the cheapest to fix. Corrosion on battery terminals (the white, green, or blue powdery buildup) has high electrical resistance. Current from the alternator has to push through this resistance to reach the battery — creating a voltage drop across the terminal rather than at the battery itself.
What happens: The alternator produces 14.2V — but 1.5V is lost across the corroded terminal. The battery only receives 12.7V — not enough to charge it. A voltmeter at the alternator output shows correct voltage; a voltmeter at the battery shows low voltage. This discrepancy confirms the terminal is the problem.
The voltage drop test: Measure voltage at the alternator output terminals and at the battery terminals simultaneously (engine running). Any difference above 0.5V indicates resistance in the cables or connections — find and clean or replace the corroded section.
Fix: Remove terminals, clean with a wire brush and bicarbonate of soda solution, dry thoroughly, apply dielectric grease, reattach firmly. Free DIY fix that takes 15 minutes.
AFFILIATE: WD-40 Electrical Contact Cleaner — cleans terminal corrosion effectively and prevents moisture re-entering the connection.
4. Failing Voltage Regulator
The voltage regulator — usually built into the alternator on modern cars — controls how much current the alternator produces. It varies alternator output to maintain a consistent 13.8–14.7V regardless of engine RPM or electrical load.
A failing regulator can cause:
- Overcharging: Voltage consistently above 14.8V — damages the battery and can cause electrical component failure. The battery may gas and bubble.
- Undercharging: Voltage consistently below 13.5V — battery slowly discharges despite the alternator running.
- Hunting: Voltage oscillates — rapidly fluctuating up and down. Lights flicker at idle.
Diagnosis: Monitor voltage with a multimeter over a drive. Stable 13.8–14.4V = regulator fine. Fluctuating or consistently low/high = regulator fault.
Cost: On modern cars, the regulator is integral to the alternator — replacing the alternator replaces the regulator. On older vehicles, some external regulators can be replaced separately (£20–£80).
5. Excessive Electrical Load Exceeding Alternator Capacity
Every alternator has a rated output in amps — typically 90–150A on standard passenger cars. If the total electrical demand exceeds this output, the alternator can’t keep up — the battery supplements the alternator, discharging in the process.
When this happens:
- Night driving with full headlights, heated seats, heated windscreen, rear demister, blower on maximum, and infotainment playing
- Aftermarket audio systems with large amplifiers drawing 50–100A alone
- Additional lighting (roof racks with spotlights, work lights)
How to check: Calculate total draw by listing all active accessories and their typical current draws (most are listed in the owner’s manual or on the component). If total exceeds alternator rated output — the system is undersized for the load.
Fix: Either reduce simultaneous loads, or upgrade to a higher-output alternator.
6. Parasitic Battery Drain
A parasitic drain is an electrical load that remains active when the car is switched off. This isn’t a cause of voltage drop while driving — but it’s the cause of a battery that’s partially discharged before each drive, meaning the alternator spends the first part of every journey charging the battery rather than maintaining it, and voltage is lower than expected during this period.
How to test for parasitic drain:
- Engine off, everything switched off including interior lights
- Connect an ammeter in series with the negative battery cable
- Wait 10 minutes for all systems to go to sleep
- Current draw should be below 50 milliamps (0.05A) for a healthy system
- Above 100mA = parasitic drain present
Common sources: A boot light that stays on, a failed relay keeping a circuit active, an aftermarket device with a constant draw, or a short circuit.
For more on electrical faults causing constant drain, see our article on can a car battery die while driving.
7. Failing Battery — Background Factor
A battery that’s weakening doesn’t directly cause voltage drop while driving (that’s the alternator’s job), but it becomes relevant when:
- The battery can no longer buffer voltage spikes — causing flickering lights as demand varies
- The battery has high internal resistance — absorbing the alternator’s output without reaching full charge, meaning it contributes less when demand peaks
- The battery’s cells have failed — the alternator output appears normal but the battery can’t hold charge between drives
How to test battery condition: A battery load test (available free at most motor factors with battery testing equipment) applies a specific current load and measures how the voltage holds. A battery that drops below 9.6V during a 15-second load test at its rated cold cranking amps is failing.
NOCO Genius5 Battery Charger — smart charger that analyses battery condition and can often recover a sulphated battery. Worth trying before replacement.
Step-by-Step Diagnosis — Find Your Cause in 20 Minutes
Step 1: Measure voltage at battery (engine off) Should read 12.4–12.7V. Below 12.0V = battery is significantly discharged or failing. Charge fully before continuing diagnosis.
Step 2: Measure voltage at battery (engine running, no loads) Should read 13.8–14.7V. Below 13.0V = alternator not charging adequately. Above 14.8V = regulator fault (overcharging).
Step 3: Measure voltage at battery (engine running, all loads on — headlights, blower max, heated seats, AC) Should read 13.2–14.2V. If voltage drops significantly below 13V under full load — alternator undersized or failing under load.
Step 4: Check for voltage drop across terminals Measure voltage at alternator output and at battery positive terminal simultaneously (engine running). Difference above 0.5V = cable or terminal resistance. Check and clean connections.
Step 5: Inspect belt Visual inspection — glazing, cracks, fraying. Tension check — 10mm deflection midway between pulleys. Squealing under load = slipping.
Step 6: If alternator output consistently low — alternator test A motor factor or workshop can test the alternator on or off the car with a dedicated alternator tester. This confirms whether the alternator is the fault.
What Happens If You Ignore Voltage Drop While Driving
Short-term: Battery progressively discharges. Electrical systems start to behave erratically — ABS warning lights, engine management faults, infotainment resets. Car eventually fails to start.
Medium-term: Deep discharge cycles damage the battery’s chemistry — the battery loses capacity permanently. What was a fixable alternator problem becomes both an alternator and battery replacement.
Long-term: Running at low voltage stresses ECU and other sensitive electronics. Some modules don’t tolerate extended low-voltage operation well — data corruption or premature failure is possible.
The cascading cost: alternator £300 → alternator £300 + battery £100 (because the battery was repeatedly deep discharged) → alternator £300 + battery £100 + ECU diagnosis £100 (because of corruption faults).
For what to do if the battery completely dies while driving, see our article on can a car battery die while driving.
Repair Cost Summary
| Repair | DIY Cost | Shop Cost |
|---|---|---|
| Terminal cleaning | £0–£5 | £30–£60 |
| Drive belt replacement | £15–£40 | £80–£200 |
| Battery replacement | £60–£150 | £100–£200 fitted |
| Alternator replacement | £80–£250 | £200–£500 |
| Voltage regulator (external) | £20–£80 | £80–£180 |
| Parasitic drain diagnosis | — | £60–£120 |
Frequently Asked Questions
Why does my voltage drop only at idle? The alternator produces less output at low RPM (idle) than at higher RPM (driving). A weak alternator that can just about keep up at driving speeds may fall short at idle — particularly with high electrical loads. If voltage is acceptable while driving but drops when stationary with everything on, the alternator is marginal. Also check idle speed — a low idle reduces alternator RPM further.
My battery light came on but the car drives normally — what do I do? The battery warning light monitors charging system voltage. It illuminates when voltage falls outside the normal range (typically below 12.5V or above 15V). Don’t ignore it — the car will continue driving until the battery discharges completely. Diagnose the charging system promptly.
Can jump-starting cause voltage drop issues? Repeatedly jump-starting a car that has a charging system fault repeatedly deep-discharges the battery. Each deep discharge reduces battery capacity. Jump-starting treats the symptom (dead battery) not the cause (alternator fault). Fix the charging system.
My voltage is fine when the car is cold but drops when hot — why? Thermal expansion of worn alternator components can cause intermittent contact failure when hot. This is a classic symptom of alternator failure that’s approaching — the alternator is working when cold but losing output as it heats up. The alternator needs replacement.
Does revving the engine help charge the battery? Only marginally and only temporarily. The alternator produces more output at higher RPM, so revving increases charging rate. But if the alternator is failing, revving won’t fix a diode that’s blown. For more on this, see our article on does revving the engine charge the battery.
What voltage does your multimeter show at the battery terminals with the engine running — and does it change significantly when you switch headlights or the blower on? Those two readings tell me exactly what the problem is — leave them in the comments.
