Intake Manifold Gasket Leak Symptoms: 8 Signs, How to Diagnose, and Repair Costs
Quick Answer: The most common symptoms of a failing intake manifold gasket are coolant leaking externally from the engine sides, rough idle or engine hesitation, unexplained coolant level drops, and in some cases overheating. Unlike a head gasket failure, intake manifold gasket leaks rarely cause white exhaust smoke or oil contamination — those symptoms point elsewhere. Most intake manifold gasket failures are either coolant leaks (external) or vacuum leaks (internal) — and the two need different fixes.
I diagnosed an intake manifold gasket leak on a Vauxhall Vectra last year that had been misdiagnosed twice as a head gasket failure. The owner had already been quoted £900 for a head gasket replacement. The giveaway was simple: the coolant was leaking externally — visible on the engine block — not internally. Head gasket failures almost always show internal symptoms first (white exhaust smoke, milky oil, overheating). External coolant pooling at the manifold joint is classic intake gasket territory. New intake manifold gaskets: £35 in parts. Problem solved.
Knowing which gasket is failing — and what type of failure it is — saves significant money and prevents unnecessary repairs.

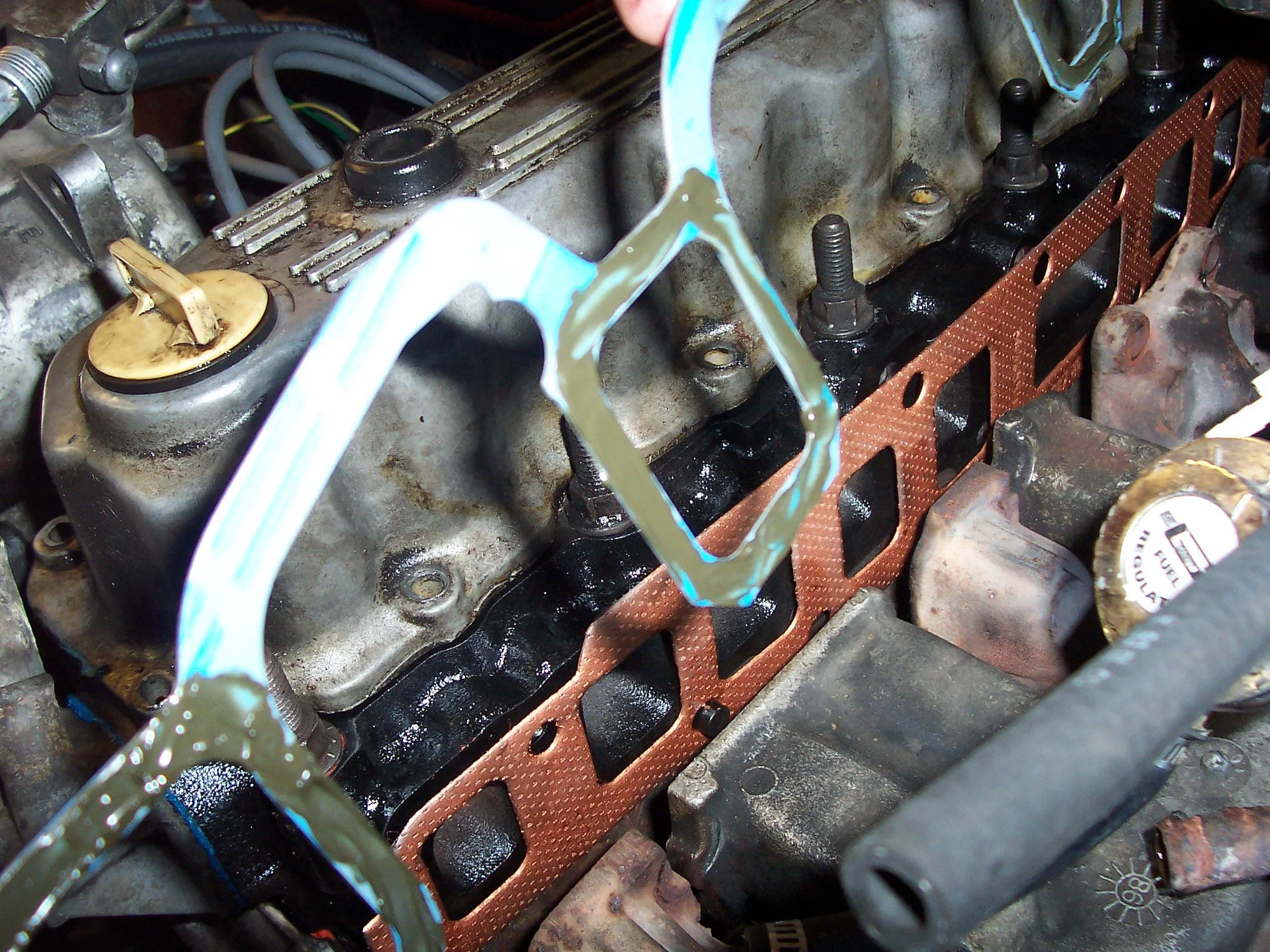

Understanding What the Intake Manifold Gasket Does
The intake manifold sits on top of the engine and distributes the air-fuel mixture to each cylinder. The gasket seals the joint between the manifold and the cylinder head(s), preventing two types of leaks:
External leaks: Coolant or air escaping to the outside of the engine. These are visible and create identifiable symptoms.
Internal leaks (vacuum leaks): Unmetered air entering the intake system from outside the manifold. No liquid escapes — instead, air that bypasses the MAF sensor gets into the cylinders, leaning out the fuel mixture and causing running problems.
Why this matters for diagnosis: External coolant leaks and internal vacuum leaks feel completely different and need different fixes. An external coolant leak needs new gaskets. A vacuum leak needs the manifold reseated or the gasket replaced at the vacuum side. Treating one as the other wastes time and money.
Intake Manifold Gasket vs Head Gasket — Know the Difference First
This is the most important distinction in this entire guide, because the two failures are frequently confused and have completely different cost implications.
| Symptom | Intake Manifold Gasket | Head Gasket |
|---|---|---|
| White exhaust smoke | Rare | Very common |
| Milky/creamy oil | Rare | Very common |
| External coolant leak | Very common | Less common |
| Overheating | Mild to moderate | Often severe |
| Rough idle | Yes (vacuum leak side) | Yes (misfire side) |
| Coolant in exhaust | No | Yes |
| Bubbles in coolant reservoir | No | Yes |
| Repair cost | £200–£600 | £700–£1,800 |
The key rule: If you see milky oil on the dipstick, white sweet-smelling smoke from the exhaust, or bubbles forming in the coolant reservoir with the engine running — that’s a head gasket, not an intake manifold gasket. Stop driving and get it checked immediately.
If you see external coolant pooling on the engine sides, rough idle, or unexplained coolant loss without the above symptoms — intake manifold gasket is the more likely culprit.
For a detailed look at white exhaust smoke causes and what they indicate, see our guide on white smoke from exhaust.
8 Symptoms of a Failing Intake Manifold Gasket
1. External Coolant Leak — Most Common Symptom
On most engines, coolant passages run through the intake manifold — the gasket seals these passages against the cylinder head. When the gasket fails at a coolant port, coolant leaks externally down the side of the engine block.
What it looks like: A stain or dried residue on the engine block, typically on the side near where the intake manifold meets the head. The residue may be white/crystalline (dried coolant) or orange/green (coloured coolant). On a running engine, you may see steam or active dripping.
Critical distinction from head gasket: This leak is external — you can see it on the outside of the engine. Head gasket coolant leaks are typically internal (coolant enters the combustion chamber and exits as exhaust smoke) or cause overheating without visible external leakage.
Where to look: On inline 4-cylinder engines, check both sides of the intake manifold where it meets the head. On V6 and V8 engines, check the valley between the cylinder banks where the intake manifold sits — this is the most common leak point on older V-type engines.
BlueDevil Coolant Stop Leak — temporary solution while awaiting repair]
2. Unexplained Coolant Level Drop
If your coolant reservoir is consistently dropping without any visible puddle under the car, the coolant may be leaking slowly onto the hot engine and evaporating before it reaches the ground.
How to confirm: Park the car overnight on clean, dry pavement. Check for any fluid directly under the engine bay. Now check the coolant reservoir level before starting. Note the level. Drive normally for a week and check again. A drop of more than 100ml per week without any visible puddle suggests an evaporating external leak — consistent with an intake manifold gasket seeping coolant onto a hot surface.
What makes this tricky: The evaporating coolant creates a sweet smell from the engine bay — which can be mistaken for a heater core leak or other source. The smell is the same regardless of which gasket is failing.
For more on coolant disappearing without visible leaks, read our article on why is my car going through coolant so fast.
3. Rough Idle or Hunting RPM — Vacuum Leak Symptom
On the air side of the gasket, a failure allows unmetered air to enter the intake manifold. This is called a vacuum leak. The ECU isn’t accounting for this extra air — it injects fuel for the air it measured through the MAF sensor, but the actual cylinder charge is leaner (more air, same fuel) than expected.
What this feels like: Rough, unsteady idle that may hunt up and down between 600–1,100 RPM. The car may feel hesitant to pull away from rest or stumble under light throttle. The rough idle is often worse when the engine is cold and may partially improve as the engine warms (heat causes metal to expand, temporarily closing small gaps).
Check engine codes: A vacuum leak from an intake manifold gasket commonly triggers P0171 (system lean, bank 1) or P0174 (system lean, bank 2). These codes indicate the ECU is adding more fuel than expected to compensate for a lean condition.
The hissing test: With the engine idling, listen carefully for a hissing or whistling sound from the engine bay. A vacuum leak creates a faint but distinct hiss as air is sucked through the gap. This is often easiest to hear with the engine cold when the gap is slightly larger.
See our article on can a bad belt tensioner cause rough idle for a comparison of rough idle causes — vacuum leaks are one of several causes of this symptom.
4. Engine Hesitation or Poor Acceleration
A vacuum leak from the intake manifold gasket causes the fuel mixture to be leaner than the ECU expects. Under normal idle conditions, the ECU can compensate adequately through fuel trim adjustments. But under acceleration — when fuel demand spikes — the compensation may fall short, causing a stumble or hesitation as you push the throttle.
Pattern: The hesitation typically occurs at light to moderate throttle input, particularly when pulling away from a stop or during gentle acceleration. Hard acceleration (where the throttle is wide open and the ECU is in open-loop fuelling) may feel fine by comparison.
Related symptom: Slightly worse fuel economy than usual, because the ECU is running richer fuel trim to compensate for the perceived lean condition, burning more fuel than necessary.
5. Check Engine Light — Lean Codes or Misfire Codes
The check engine light from an intake manifold gasket failure typically shows up as lean condition codes:
| OBD2 Code | Meaning | Intake Gasket Connection |
|---|---|---|
| P0171 | System too lean, bank 1 | Vacuum leak leaning out bank 1 cylinders |
| P0174 | System too lean, bank 2 | Vacuum leak leaning out bank 2 (V engines) |
| P0300–P0308 | Random/specific misfire | Lean mixture causing incomplete combustion |
| P0507 | Idle control high RPM | ECU can’t control idle due to unmetered air |
Important context: These codes have many other causes — MAF sensor issues, fuel injector problems, and other vacuum leaks all generate the same P0171/P0174 codes. The codes alone don’t confirm an intake gasket failure. Physical inspection is needed to pinpoint the source.
6. Sweet Smell From Engine Bay
Coolant has a distinctive sweet, slightly chemical smell. When a small amount of coolant leaks onto a hot intake manifold or engine block and evaporates, this smell enters the engine bay and can be noticeable with the bonnet open or even through the cabin ventilation system.
How to use this symptom: If you smell sweetness from the engine bay but see no visible puddles and the temperature gauge is normal, a small coolant leak onto hot surfaces is likely. This is often the first symptom noticed before the coolant level drop becomes obvious.
Distinguish from heater core: Heater core leaks produce the same sweet smell but the smell is strongest inside the cabin, often accompanied by foggy windows and a greasy film on the inside of the windscreen. Engine bay sweetness without cabin symptoms points more toward intake or coolant hoses.
7. Engine Overheating — Usually Mild
An intake manifold gasket that’s leaking coolant externally causes gradual coolant loss. As the coolant level drops, the cooling system efficiency drops — the engine may begin to run slightly hot, particularly in traffic or when the cooling demand is highest.
What distinguishes this from head gasket overheating: Head gasket overheating is typically rapid and severe — the temperature gauge climbs into the red within minutes in traffic. Intake manifold gasket overheating is slower and more gradual, often showing up as “running a bit warm” rather than “overheating.”
Never ignore any overheating. Even mild overheating accelerates wear on seals, warps cylinder heads over time, and can cause secondary gasket failures. Address coolant loss promptly regardless of how mild the temperature rise seems.
For a broader look at overheating causes, see our article on can a radiator flush fix overheating.
8. Oil Contamination — Rare, But Possible on Some Engines
On certain engine designs — particularly older American V8s and some V6 engines — the intake manifold sits in the valley between the two cylinder banks and seals both coolant passages and oil passages. When the gasket fails at an oil passage, oil can contaminate the coolant or vice versa.
This is less common on modern engines where oil passages aren’t routed through the intake manifold area. But on affected designs (3.1L and 3.4L GM V6 engines are notorious for this), milky coolant or oily coolant can result from an intake manifold gasket failure rather than a head gasket.
How to check: Pull the coolant reservoir cap when the engine is cold. Look at the underside of the cap and the coolant surface. Any oily, creamy residue indicates oil/coolant mixing. Then check the oil dipstick — milky appearance here confirms the mixing.
For understanding what oil contamination looks like and means, read our guide on what your engine oil colour means.
How to Diagnose an Intake Manifold Gasket Leak at Home
Method 1: Visual Inspection (5 minutes, free)
With the engine cold, look along both sides of the intake manifold where it meets the cylinder head. Use a torch. Look for:
- Dried white, green, or orange residue (dried coolant)
- Active wetness or staining on the engine block below the manifold joint
- Any cracking or warping visible on the manifold gasket edges (if visible)
Method 2: Cold-Start Observation (10 minutes, free)
Start the engine from cold and watch the manifold area for steam. Small coolant leaks onto cold surfaces create steam that dissipates quickly — harder to see once the engine is hot and the leak surface is also hot.
Method 3: Carb Cleaner Spray Test — Vacuum Leak Detection
With the engine idling roughly, carefully spray a small amount of carburettor cleaner or brake cleaner around the intake manifold gasket seam. If the idle smooths out momentarily when you hit a particular spot, you’ve found a vacuum leak at that location — the cleaner is temporarily sealing the gap.
Safety: Keep spray away from hot exhaust components. Use very short bursts. Keep a fire extinguisher accessible. This is a valid DIY diagnostic tool but requires care.
Method 4: Coolant Pressure Test
A cooling system pressure tester pressurises the cooling system and holds pressure while you watch for leaks. External coolant leaks from the intake manifold gasket will show as seeping or dripping at the manifold joint under pressure — much more visible than at ambient pressure.
Laser 4277 Cooling System Pressure Tester Kit — professional grade, works on all vehicles]
Method 5: OBD2 Scan for Lean Codes
Scan for P0171 and P0174 codes. If present alongside any of the above symptoms, vacuum leak from the intake area becomes a strong suspect. Check fuel trims in live data — short-term fuel trim (STFT) values above +10% at idle indicate the ECU is adding significant fuel to compensate for unmetered air.
Repair Process and Costs
What the Repair Involves
Intake manifold gasket replacement requires removing the intake manifold to access the gaskets. This involves:
- Draining coolant (partial or full depending on engine)
- Removing connected throttle body, fuel rail, vacuum lines, and wiring
- Unbolting the manifold
- Cleaning all mating surfaces thoroughly — critical for a good seal
- Installing new gaskets with correct torque sequence
- Refilling and bleeding the cooling system
The labour time varies significantly by engine:
- Simple 4-cylinder engines: 2–4 hours
- V6 engines: 4–7 hours
- V8 engines: 5–10 hours
Cost Breakdown
| Engine Type | DIY Parts Cost | Shop Total (Parts + Labour) |
|---|---|---|
| 4-cylinder | £15–£50 | £200–£500 |
| V6 | £25–£80 | £350–£700 |
| V8 | £40–£120 | £500–£1,000 |
| Complex V6/V8 with coolant passages | £50–£150 | £600–£1,200 |
What to Replace at the Same Time
When the manifold is already off, minimal extra cost to also replace:
- Throttle body gasket (if separate) — £5–£20
- EGR valve gasket if accessible — £10–£30
- Any coolant hoses that are near end of life — £20–£60
- Thermostat if accessible — £15–£40
For more on related cooling system maintenance, see our guide on symptoms of a faulty water pump — water pumps are sometimes accessible from the same repair area.
Is It Safe to Drive With an Intake Manifold Gasket Leak?
| Leak Type | Safe to Drive? | Urgency |
|---|---|---|
| Small external coolant seep, no overheating | ⚠️ Short term | Fix within 2 weeks |
| Larger coolant leak, level dropping | ⚠️ Carefully | Fix within days |
| Vacuum leak causing rough idle only | ⚠️ Yes short term | Fix within a week |
| Any overheating alongside symptoms | ❌ No | Fix immediately |
| Oil/coolant mixing (rare) | ❌ No | Fix immediately |
The key risk is coolant loss leading to overheating. A small seep that doesn’t affect coolant level much can be managed short-term. A leak that requires coolant top-up every week is dangerous — running low on coolant at the wrong moment can cause rapid overheating and head gasket damage, turning a £400 intake gasket repair into a £1,500 head gasket repair.
https://youtu.be/4Aa5KeuEJPQ
Frequently Asked Questions
How long can I drive with an intake manifold gasket leak? Depends entirely on severity. A minor vacuum leak with no coolant loss — possibly weeks with careful monitoring. A coolant leak that’s dropping your level noticeably — days at most, and keep the coolant reservoir topped up while you arrange the repair. Any overheating at all — stop immediately.
Can I use a coolant stop-leak product temporarily? Some liquid stop-leak products (BlueDevil, K-Seal, Bar’s Leaks) can temporarily seal small external coolant leaks from intake gaskets. They work by depositing particles that seal small gaps when heated. They’re a short-term management tool, not a permanent fix, and should never be used if the leak is internal (vacuum side) or if overheating is occurring. They can also clog the heater core and radiator if overused.
Will an intake manifold gasket leak always show a check engine light? Not always. A small coolant-side leak may not trigger any codes if the coolant loss is gradual and the ECU can compensate. A vacuum leak will eventually trigger lean codes (P0171/P0174) but may take time to set if the leak is small and the ECU fuel trim can keep up. Don’t rely on the absence of a check engine light to rule out a gasket leak.
How do I know if it’s the intake manifold gasket or the head gasket? The simplest test: check the oil and the coolant separately. Milky/creamy appearance on the dipstick or in the coolant = head gasket (coolant and oil mixing internally). Clear oil and dropping coolant with external staining = intake manifold gasket. White exhaust smoke that smells sweet = head gasket. No exhaust smoke but a sweet smell from the engine bay = likely intake gasket.
Can an intake manifold gasket leak cause the car not to start? A severe vacuum leak from a failed intake manifold gasket can make starting difficult because the ECU can’t maintain proper idle fuelling when large amounts of unmetered air are entering. The car may start and immediately stall, or run very rough and unstably. This is usually a sign of a significant gasket failure rather than a minor seep.
What causes intake manifold gaskets to fail? Age and heat cycling are the primary causes — the gasket material hardens and loses its sealing ability over time. Overheating episodes accelerate this significantly by warping the manifold slightly, breaking the gasket seal. Incorrect torque during previous manifold removal, using the wrong gasket material, and coolant neglect (allowing coolant to become acidic) also contribute. Most gaskets have a natural lifespan of 80,000–150,000 miles, but this varies considerably by engine design and maintenance history.
Is your coolant level dropping without visible puddles, or are you getting lean codes alongside a rough idle? Those two symptom combinations point in different directions — leave the details in the comments and I’ll help pinpoint which type of intake gasket failure you’re dealing with.
