Upgrading JDM Alternators: A Comprehensive Guide

Upgrading JDM Alternators: A Comprehensive Guide to High-Output Solutions

This guide provides a comprehensive look at the process and benefits of upgrading JDM alternators. If you’re a JDM (Japanese Domestic Market) car owner looking to enhance your vehicle’s electrical performance, this guide is for you. We’ll cover everything from understanding your car’s electrical needs to selecting the right high-output alternator. Many JDM cars, especially older models, struggle to meet the electrical demands of modern accessories and performance modifications. Upgrading to a high-output alternator can solve these issues and ensure reliable performance. To ensure your car’s electrical components are performing as they should, also be sure to check the JDM battery specs.



Estimated Reading Time: 7 minutes



Key Takeaways:

  • Understand the electrical demands of your JDM car.
  • Calculate your vehicle’s total electrical load.
  • Choose an alternator with an amperage rating that exceeds your needs.
  • Ensure proper fitment, wiring, and grounding.



Table of Contents:



Understanding JDM Electrical Systems

JDM vehicles are cars manufactured and originally sold in Japan. These vehicles often have unique characteristics that differentiate them from cars sold in other markets. One area where this is particularly true is the electrical system. JDM cars sometimes have different electrical configurations and capacities due to variations in factory-installed equipment and regulatory requirements.

The “right-hand drive electrical load” can also impact the overall electrical system. The placement of components, wiring runs, and grounding points may differ compared to left-hand drive vehicles. For example, the battery, fuse box, and some relays might be located on the opposite side of the engine bay. This difference can affect the distribution of electrical load and requires specific alternator considerations, especially when upgrading. For those unfamiliar, you may want to compare this to a transmission servicing, where similar considerations are important.



The Need for High-Output Alternators

The original (stock) alternators in many JDM cars were designed for the electrical demands of the vehicle as it was originally manufactured. However, installing aftermarket accessories like high-powered sound systems, auxiliary lighting, or performance modifications (e.g., electric fuel pumps) significantly increases the demand on the electrical system. For example, upgrading your car for performance means you may need to consider HKS performance oil recommendations.

When the electrical demand exceeds the alternator’s capacity, it can lead to several problems:

  • Dimming headlights
  • Reduced audio system performance
  • Battery drain
  • Potential damage to electrical components

High-output alternators are designed to produce a higher amperage output than stock alternators, enabling them to handle increased electrical loads. Upgrading JDM alternators to a high-output unit is often necessary to ensure reliable performance and prevent electrical issues when modernizing JDM cars. Knowing how long alternators last can also help you plan for upgrades proactively.

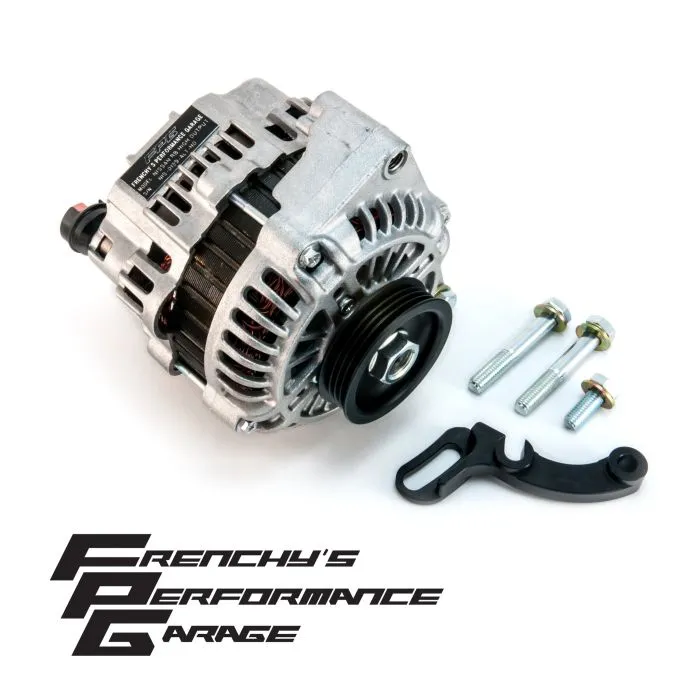

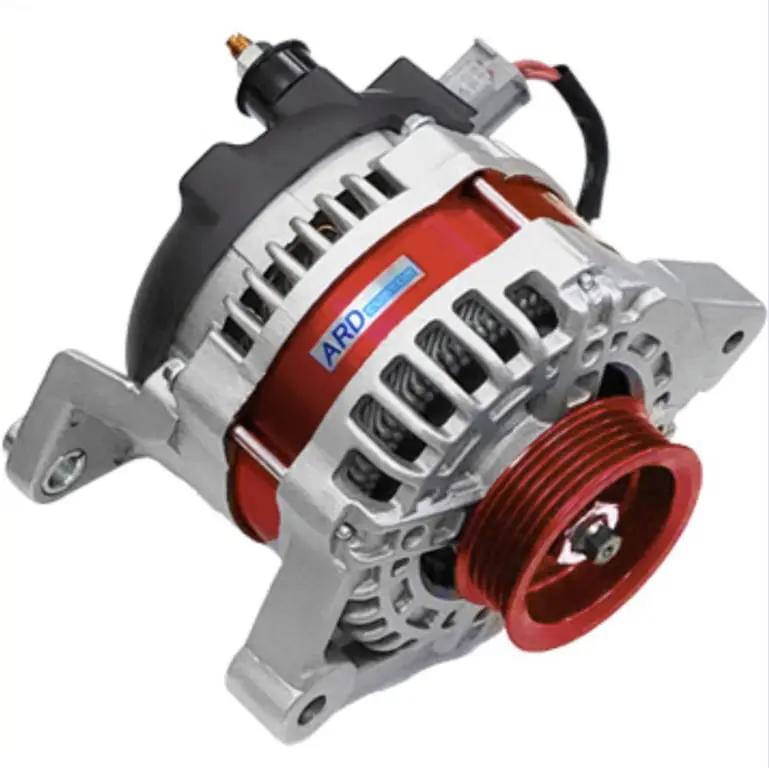

JDM alternator

Choosing the Right High-Output Alternator

Selecting the correct high-output alternator for your JDM car is crucial for optimal performance and reliability. Here are several factors to consider:

Amperage Rating

Amperage (amps) is the unit of measurement for electrical current. The higher the amperage rating of an alternator, the more electrical power it can produce. Calculate your vehicle’s total electrical load by adding up the amperage draw of all electrical components (stock and aftermarket). Choose a high-output alternator with an amperage rating that exceeds the calculated total load by a safety margin (e.g., 20%). Using a digital multimeter can help you check the voltage and current in your car’s electrical system. An affordable multimeter like this one can be a useful tool for diagnosing electrical issues [Digital Multimeter]. Moreover, if your car is going into limp mode, there is a chance that sensors can cause limp mode.

Fitment and Compatibility

Select an alternator specifically designed for your JDM car’s make, model, and year. Alternators have different mounting configurations, pulley types, and wiring connectors. Using an incompatible alternator can lead to installation problems and potential electrical damage. You might even experience a car won’t start until it cools down issue if the alternator isn’t compatible.

Wiring Considerations

High-output alternators may require thicker gauge wiring to handle the increased current flow. Inspect the existing wiring for any signs of damage or wear and replace it as needed. Proper grounding is crucial for optimal alternator performance. Ensure that the alternator is properly grounded to the vehicle’s chassis. If you notice smoke, this could be a sign of smoke coming out of the oil cap, which could indicate issues with the alternator or engine.

Brand Reputation and Quality

Research different alternator brands and choose one with a reputation for quality and reliability. Read reviews from other JDM car owners to get insights into the performance and durability of different alternators. You’ll also want to consider your exhaust system and read up on maintaining Kakimoto exhausts for peak performance.

Right-Hand Drive Considerations

Right-hand drive electrical load configurations may present unique challenges. Double-check that the chosen alternator is compatible with your vehicle’s specific wiring layout and component placement. Consider consulting with a mechanic experienced in working on JDM cars to ensure proper fitment and wiring. Don’t forget about RHD wiper maintenance to improve your JDM car’s visibility!



Installation Guide

Disclaimer: This is a general guide, and professional installation is recommended if you are not comfortable working on your car’s electrical system.

Safety First: Disconnect the negative battery cable before starting any electrical work.

Tools Needed: Wrenches, sockets, screwdrivers, wire strippers, crimpers, and a multimeter. A torque wrench is also important for tightening bolts to the manufacturer’s specifications. A 1/2″ drive torque wrench like this one can help you ensure proper torque [Torque Wrench (1/2″ Drive)].

General Installation Steps:

  1. Locate the existing alternator.
  2. Disconnect the wiring harness and any other connections to the alternator.
  3. Remove the alternator belt.
  4. Unbolt the alternator from its mounting bracket.
  5. Install the new high-output alternator in the reverse order.
  6. Ensure proper belt tension.
  7. Reconnect the wiring harness and other connections.
  8. Reconnect the negative battery cable.

JDM-Specific Considerations:

Highlight any potential differences in alternator placement or wiring configurations specific to JDM cars. Take photos of the wiring connections before disconnecting anything to ensure you can reconnect everything correctly.

While a detailed step-by-step guide is beyond the scope of this article, here’s a helpful resource with more information on alternator upgrades: How to Upgrade Your Alternator.



Troubleshooting Common Issues

Here are some common issues you might encounter after upgrading JDM alternators:

No Output Voltage

  • Check the alternator fuse.
  • Inspect the wiring harness for any damage or loose connections.
  • Test the alternator’s output voltage with a multimeter. A healthy alternator should produce around 13.5-14.5 volts.
  • If the alternator is not producing the correct voltage, it may be faulty and need to be replaced.

Overcharging

  • Overcharging can damage the battery and other electrical components.
  • Check the voltage regulator (usually integrated into the alternator). A faulty voltage regulator can cause the alternator to overcharge.
  • Replace the alternator if the voltage regulator is malfunctioning.

Belt Squeal

  • Belt squeal is often caused by a loose or worn alternator belt.
  • Adjust the belt tension or replace the belt if it is worn.
  • Ensure that the alternator pulley is properly aligned with the other pulleys. A bad belt tensioner can cause a rough idle.

Wiring Problems

  • Inspect the wiring for any signs of damage, corrosion, or loose connections.
  • Repair or replace any damaged wiring.
  • Ensure that all connections are clean and secure.

Right-Hand Drive Electrical Load Issues

Right-hand drive electrical load configurations may require specific troubleshooting steps. Consult with a mechanic experienced in working on JDM cars if you encounter persistent electrical problems. Another thing to consider for your car is preparing for Shaken inspection.



Conclusion

Upgrading JDM alternators to high-output units offers numerous benefits, including improved performance, reliability, and the ability to power modern accessories. Choosing the right high-output alternator for your specific vehicle and electrical needs is essential. Don’t forget to consider right-hand drive electrical load specifics during the selection and installation process. If you’re unsure about any aspect of the upgrade process, consult with a qualified mechanic. Now is the time to research high-output alternators from reputable brands and enhance your JDM car’s electrical system.



FAQ

Q: How do I know if I need a high-output alternator?

A: If you experience dimming headlights, battery drain, or have installed several aftermarket electrical accessories, you likely need a high-output alternator.

Q: Can I install a high-output alternator myself?

A: If you are comfortable working on your car’s electrical system and have the necessary tools, you can install it yourself. However, professional installation is recommended for those without experience.

Q: What is the ideal amperage rating for my high-output alternator?

A: Calculate your vehicle’s total electrical load and choose an alternator with an amperage rating that exceeds that load by at least 20%.

Q: Do I need to upgrade my wiring when installing a high-output alternator?

A: High-output alternators may require thicker gauge wiring to handle the increased current flow. Inspect your existing wiring and upgrade as needed.
